Product description

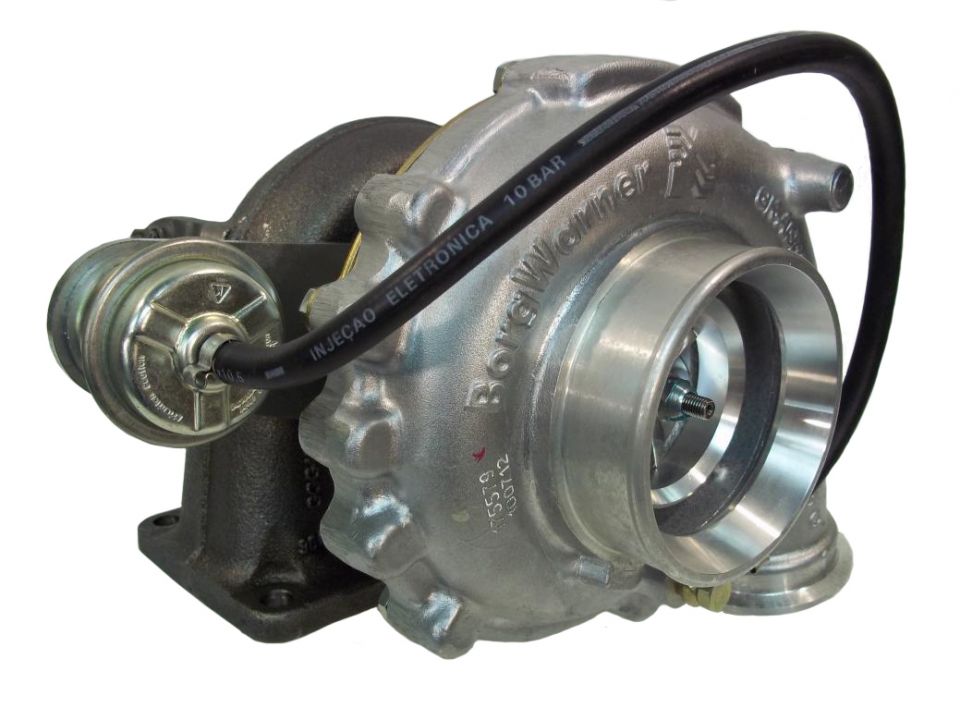

Borg Warner K27 replacement for the Holset HX35W turbocharger.

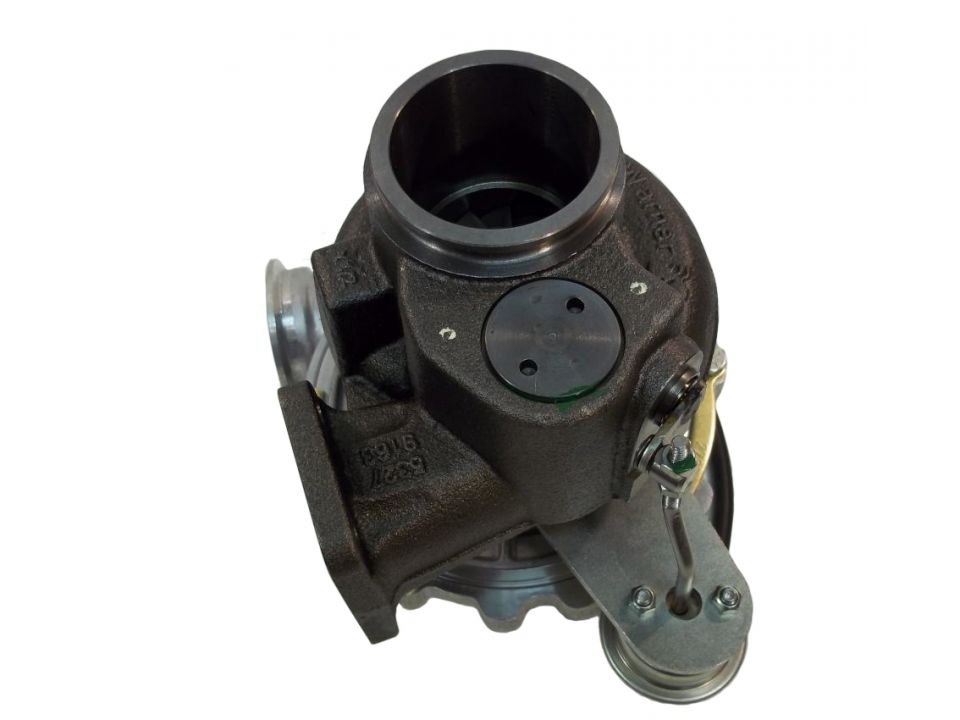

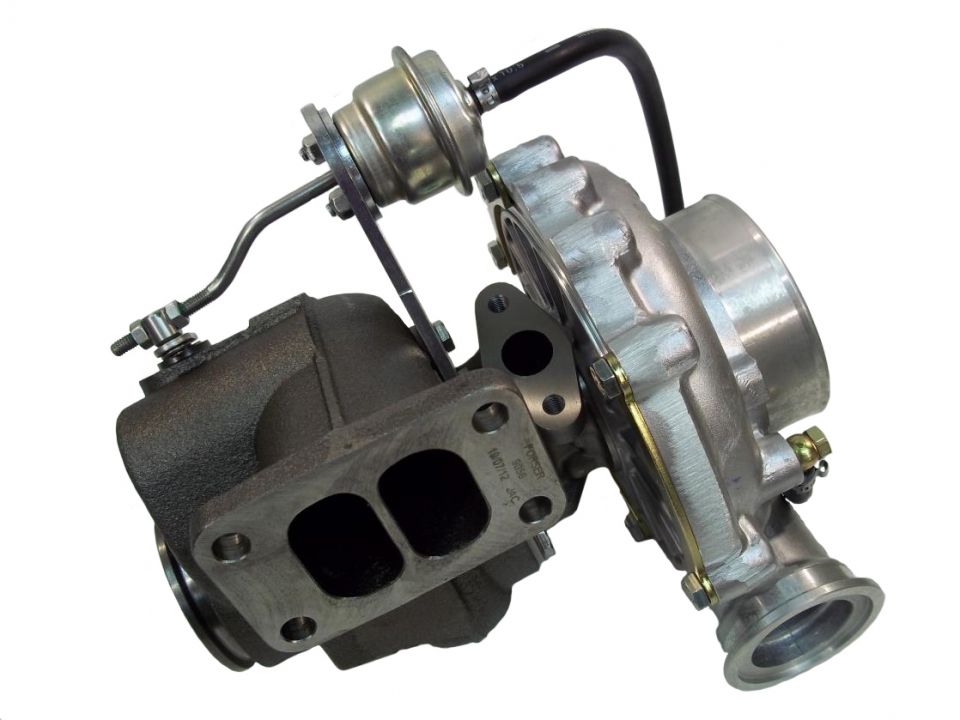

The K27 is capable of supporting up to 400HP. It features a 60/83.7mm Forged Milled Wheel (FMW) 7/7-blade design compressor to resist low- and high-cycle fatigue. The turbine is a quick-response, 70/58.83mm 12 blade advanced design cast in Inconel and provides great backpressure control. The turbine housing is a twin-volute, single-valve wastegate housing with 18.2cm2 nozzle area and an adjustable wastegate actuator that is preset at 1.8bar. The oil Inlet is threaded M12 and the oil drain is threaded M8, just like the Holset.
HX35W OEM Part Numbers that the K27 will replace:
3538881, 3538882, 3538883, 3538884, 3539009, 3539010, 3539369, 3539371, 3539373, 3539911, 3592202, 3592766, 3597911, 3597912, 3599464, 3802881, 3802882, 4090050.
For 1988-1991 (non-intercooled) Dodge Ram trucks, it is recommended that a complete intercooler system from a 1992-1993 truck is fitted, or, if not, the compressor discharge piping will require modification to connect to the intake crossover. It will be necessary as well to move the turbine outlet pipe rearward approximately 2??, as the wastegated turbocharger is ??longer?? than the non-wastegated H1C turbocharger.
For 1992-1993 (intercooled) Dodge Ram Trucks, the turbine outlet pipe will need the same rearward relocation. No modification to the intercooler plumbing is required.
For 1994-1998 Dodge Ram trucks, with Holset coverplate terminating in the ??HX35?? v-flange, no modifications of any type will be required for a direct fitment, except, possibly, a re-index of the housings, which can be done safely in the field.
For 1998-2002.5 Dodge Ram trucks, equipped with model HX35W turbochargers, it will be necessary to obtain Cummins 3927811 casting and 3903652 v-clamp, in order to replace the removed cast ??five-bolt?? elbow and allow the original turbine outlet pipe to connect. No other modifications will be required, except, possibly a re-index of the housings, which can be done safely in the field.
For 2000-2002.5 Dodge Ram trucks, equipped with model HY35W turbochargers, it will be necessary to obtain Cummins 3927811 casting and 3903652 v-clamp, in order to replace the removed cast ??five-bolt?? elbow and allow the original turbine outlet pipe to connect. It will also be necessary to replace the two studs installed into the original turbine inlet flange with two stainless-steel bolt-and-nut combinations. No other modifications will be required, except, possibly a re-index of the housings, which can be done safely in the field.
For 2003-2007.5 Dodge Ram trucks, equipped with either model HY35W, HE351W, or HE351CW turbochargers, It will be necessary to fabricate or obtain adaptors for the compressor discharge and for the turbine discharge. These materials already exist in the ??performance?? aftermarket. On trucks equipped with the HE351CW turbocharger, a ??boost fooler??, or resistor must be used to override the signal to the Command Valve.
*It cannot be stated strongly enough that the above modifications should only be undertaken by a qualified individual. Although care has been taken to research the above data, there are factors that may be present that have not been confirmed.
**If you, or your end customer, is not 100% confident in their ability to perform these modifications, the task should be assigned to a qualified workshop.
