Product description
This part has a build time and are all custom built to order.
Crazy Carl's Compound Turbo Kit for Dodge Cummins 1994-2007.
Quality 100% TIG welded construction, 409 SS and heavy gauge steel pipes.
This kit does not make you move your batteries, or your air filter, or your heat exchanger.

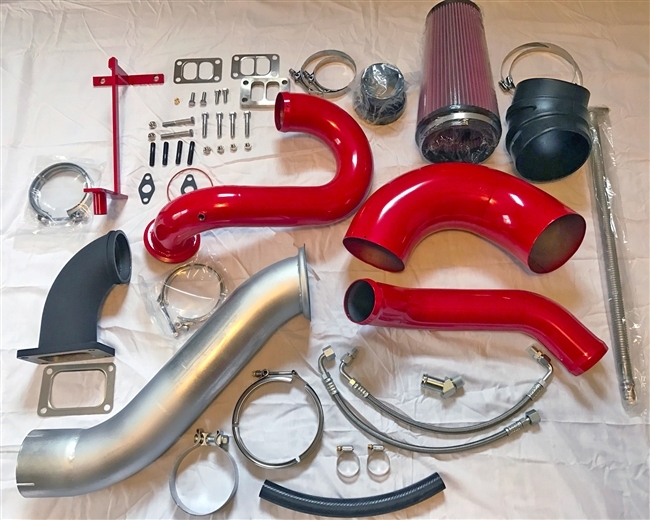

Kit includes:
Heavy duty hot pipe (regular hot pipe coated with high heat ceramic paint, upgraded 304 SS available)
1-piece metal cold pipe
Intercooler pipe
Full 5" intake pipe
4" or 5"* downpipe
Stainless top and bottom turbo oil feed lines
Top and bottom turbo oil drain lines
Billet block or pan drain fitting
Bottom turbo support bracket
Top turbo spacer plate
Quality name-brand large high flow filter
SS V-band clamps
SS T-bar clamps
Free quality powder coating - choose from more than a dozen colors
Gaskets, hardware, and basic instructions
NOTES:
1 EXHAUST MANIFOLD: ALL kits need to use either a 3pc or 1pc 98-02 24v stock geometry type manifold (not included). Will not work with tubular headers. 94-98 12V manifolds need to be aftermarket manifolds.
2 Select from a powder coat color or choose bare metal if you wish to coat your own color.
3 Can be optioned with thicker 304 Stainless Steel HD hot pipe.
4 If you have a custom application or questions, please feel free to ask.
5 Some kits using the hx35, and all using the he351 type turbos will include a spring gate controller.
6 As you'd expect, 5-inch downpipes are a tight fit, due to variations in trucks you may need to modify your firewall slightly.
*These kits are custom made to order and may take several days to ship from time of cleared payment.*
