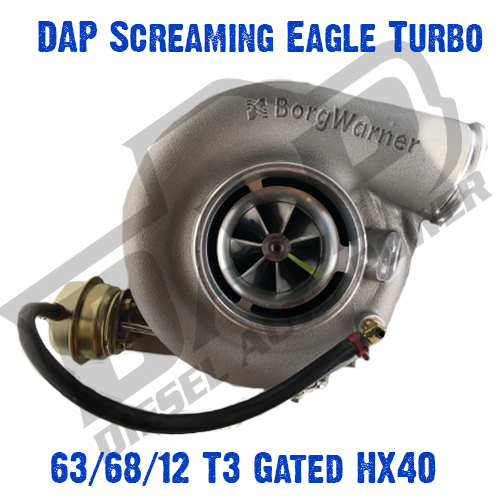

DAP Screaming Eagle SXE 63/68/12 T3 Gated

The DAP Screaming Eagle SXE 63/68/12 T3 Gated is a great performance upgrade turbo for the 5.9L Cummins while maintaining great street and towing manners.The 68mm turbine wheel will spool relatively fast and offer great all around performance for a daily driver and towing application. While heavy towing is possible, your tire size, gearing and tuning will play a major role along with choosing the correct exhaust housing for your application. Built with the latest genuine Borg Warner SXE technology it comes standard with a Forged Mill Wheel (FMW) and 360-thrust bearing. Turbo is modified for fitment into the 1991.5-2002 Dodge applications by DAP with a machined v-band compressor outlet and your choice of turbine housing cut to an HX40 4" down pipe flange.

This turbo will support 500-600HP depending on elevation and turbine choice and flows approximately 78 lbs/minute.

Injector recommendations for a 1998.5-2002 with a big programmer would be 150HP- 200HP
Injector recommendations for a 1994-1998 would be 5x.013, 5x.014, 6x.011, 6x.013, 7x.011
Injector recommendations for a 1989-1993 would be 5x.013, 5x.014, 5x.016, 6x.011, 6x.013, 7x.010, 7x.011, 7x.012

Items Needed for Install:
• HX40 4" Downpipe
• HX40 Clamp
• 4" Turbo Back Exhaust
• 1989-1993 will need to purchase a new oil inlet fitting or a new top oil line (recommended)
• (Recommended) Flexible Oil Drain Line for Easier Installation

Accessories Included:
• Oil Drain Gasket
• 2x 3/8 Oil Drain Mounting Bolts
• 2x 3/8" Turbo/Manifold Mounting bolts
• 2x 3/8" nuts
• T3 or T4 Turbo/Manifold Gasket
