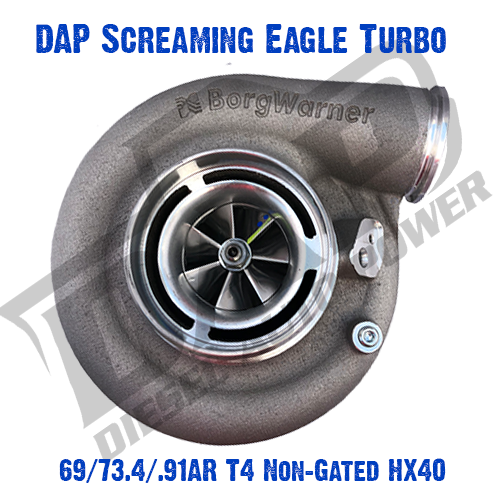

DAP Screaming Eagle SXE 69/73.4/.91AR T4 Non-Gated

DAP Screaming Eagle SXE 69/73.4/.91 T4 Non-Gated HX40 is a performance turbo in every sense of the word. With the larger compressor wheel the truck is ready to put down a lot of horsepower, towing not recommended with this turbo. The 73.4mm turbine wheel and non-gated T4 exhaust housing keeps drive pressure low. More suitable for performance and higher rpm like a competition application. A tight low stall torque converter, high elevation, big tires or tall gears will really hinder your drivability. The DAP Screaming Eagle SXE is built with the latest Borg Warner SX-E technology, so a Forged Mill Wheel (FMW) and 360-degree thrust is standard. This turbo will support 600-750HP depending on elevation, turbine choice engine modifications. It flows approximately 98 lbs/minute.

Injector recommendations for a 1998.5-2002 with a big programmer would be 300-400HP Injector recommendations for a 1994-1998 would be 5x.016, 5x.018, 5x.018 HOT, 5x.020, 5x.022, 7x.014, 7x.016 Injector recommendations for a 1989-1993 would be 5x.016, 5x.018, 5x.018 HOT, 5x.020, 5x.022, 7x.014, 7x.016

Items Needed for Install:
• HX40 4"
• HX40 Clamp
• 4" Turbo Back Exhaust
• 1989-1993 will need to purchase a new oil inlet fitting or a new top oil line (recommended)
• (Recommended) Flexible Oil Drain Line for Easier Installation

Accessories Included:
• Oil Drain Gasket
• 2x 3/8 Oil Drain Mounting Bolts
• 2x 3/8" Turbo/Manifold Mounting bolts
• 2x 3/8" nuts
• T3 or T4 Turbo/Manifold Gasket
